| Alloy: | 5083 |
| Width: | 20-2600mm |
| Thickness: | 0.15-600mm |
| Port of Loading: | QingDao,China |
| Certificated: | ISO9001:2015 |
5083 ALUMINUM SHEET DESCRIPTION:
5083 aluminum sheet belongs to Al-Mg-Si aluminium alloys. Its main contents are Magnesium and Silicon except Aluminum. Over 4.0% of Magnesium enables 5083 aluminum sheet to have excellent resistance to correction, and easily to welded. By adding cooper, 5083 aluminum sheet has 28% Electrical conductivity.
5083 aluminum sheet also has good forming characteristic for either hot or cold working. But hardening is accomplished by means of cold working only. Besides, 5083 aluminum sheet does have good strength but non-heat treatable.
5083 ALUMINUM SHEET CHEMICAL COMPOSITION:
| ELEMRNTS | Mg | Si | Iron | Ti | Cu | Mn | Cr | Zn | Others Total | Alu |
| CONTENT (WT%) | 4.0-4.9 | ≤0.4 | 0.4 | ≤0.15 | ≤0.1 | 0.4-1.0 | 0.05-0.25 | 0.25 | 0.15 | Remain |
5083 Aluminum sheet Mechanical Properties：
| Typical Temper | Tensile Strength | Yield Strength | Elongation | Thickness | Width | Length |
| (KSI) | (KSI) | (%) | (mm) | (mm) | (mm) | |
| O(annealed) | 42 | 21 | 14 | 0.2-350 | 500-3100 | Max1600 |
| H122 | 43 | 23 | 10 | |||
| H116 | 46 | 33 | 10 | |||
| H321 | 48 | 33 | 10 |
5083 ALUMINUM SHEET APPLICATIONS:
LNG ship construction
Pressure vessels
Storage tanks
Welded structures (high strength)
Armor plate
Drilling rigs
RELEVANT GRADE OF 5083 ALUMINUM SHEET:
Relevant grade of 3004 Aluminum Sheet | |

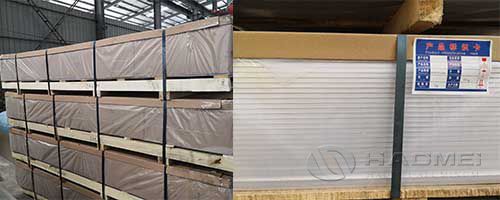

5083 ALUMINUM SHEET PACKING:
5083 aluminum sheet of henan huawei Aluminum. meet the export standard. Plastic film and brown paper can be covered at customers’ need. What’s more, wooden case or wooden pallet is adopted to protect products from damage during the delivery. There are two kinds of packaging, which is eye to wall or eye to sky. Customers can choose either of them for their convenience. Generally speaking, there are 2 tons in one package, and loading 18-22 tons in 1×20′ container, and 20-24 tons in 1×40′ container.
As a China-based 5083 aluminum sheet manufacturer and supplier, we at Huawei also produce aluminum slit coil, aluminum strip, coated aluminum coil, aluminum plate, anodising aluminum sheet, embossed aluminum sheet, etc. For more detailed information, please continue browsing our website or feel free to contact us directly.
