| Alloy: | 1100 |
| Width: | 100-2600mm |
| Thickness: | 0.2-350mm |
| Port of Loading: | QingDao |
| Certificated: | ISO9001 |
1100 ALUMINUM SHEET DESCRIPTION:
1100 aluminum sheet is the most commercially pure alloy of all the aluminium grades. 1100 aluminum sheet are both available for various applications including chemical storage and processing equipemtn. Benefits of 1100 aluminum sheet include a 99% or greater content of aluminum compared to other grades of aluminium. 1100 is a low strength aluminum alloy with excellent corrosion resistance. This grade is best used for welding, brazing and soldering but has poor machinability. 1100 aluminum sheet has great finishing capabilities so it is a great choice for decorative purposes.
1100 ALUMINUM SHEET CHEMICAL COMPOSITION:
| Elements | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others | Al | |||
| Content(max) | 0.95 | 0.40 | 0.05 | 0.05 | 0.05 | - | 0.10 | - | 0.15 | 99.95 | |||
1100 ALUMINUM SHEET PROPERTIES:
| Alloy | Temper | Thickness(mm) | Width(mm) | Length(mm) | Typical products |
| 1100 aluminum sheet | O,H12,H14,H16 H18,H19,H22,H24 H26,H28,H32,H34 H36,H38 | 0.2-350 | 100-2600 | 500-16000 | Kitchen utensils, building materials, heat exchangers, etc. |
1100 ALUMINUM SHEET PROPERTIES:
| Alloy Temper | Specified | Tensile strength | Yield strength | Elongation | |||||||||||
| Thickness(in.) | (ksi) | (ksi) | (%) | ||||||||||||
| 1100-O (annealed) | 0.006-0.019 | 11.0-15.5 | Min3.5 | Min15 | |||||||||||
| 0.020-0.031 | Min20 | ||||||||||||||
| 0.032-0.050 | Min25 | ||||||||||||||
| 0.051-0.249 | Min30 | ||||||||||||||
| 0.250-3.000 | Min28 | ||||||||||||||
| 1100-H12/1100-H22 | 0.017-0.019 | 14.0-19.0 | Min11.0 | Min3 | |||||||||||
| 0.020-0.031 | Min4 | ||||||||||||||
| 0.032-0.050 | Min6 | ||||||||||||||
| 0.051-0.113 | Min8 | ||||||||||||||
| 0.114-0.499 | Min9 | ||||||||||||||
| 0.500-2.000 | Min12 | ||||||||||||||
| 1100-H14/1100-H24 | 0.009-0.012 | 16.0-21.0 | Min14.0 | Min1 | |||||||||||
| 0.013-0.019 | Min2 | ||||||||||||||
| 0.020-0.031 | Min3 | ||||||||||||||
| 0.032-0.050 | Min4 | ||||||||||||||
| 0.051-0.113 | Min5 | ||||||||||||||
| 0.114-0.499 | Min6 | ||||||||||||||
| 0.500-1.000 | Min10 | ||||||||||||||
| 1100-H16/1100-H26 | 0.006-0.019 | 19.0-24.0 | Min17.0 | Min1 | |||||||||||
| 0.020-0.031 | Min2 | ||||||||||||||
| 0.032-0.050 | Min3 | ||||||||||||||
| 0.051-0.162 | Min4 | ||||||||||||||
| 1100-H18/1100-H28 | 0.006-0.019 | Min22.0 | - | Min1 | |||||||||||
| 0.020-0.031 | Min2 | ||||||||||||||
| 0.032-0.050 | Min3 | ||||||||||||||
| 0.051-0.128 | Min4 | ||||||||||||||
| 1100-H112 | 0.025-0.499 | Min13.0 | Min7.0 | Min9 | |||||||||||
| 0.500-2.000 | Min12.0 | Min5.0 | Min14 | ||||||||||||
| 2.001-3.000 | Min11.5 | Min4.0 | Min20 | ||||||||||||
1100 ALUMINUM SHEET APPLICATION:
1100 aluminum sheet is mostly used for some parts which require good forming and processing properties, high anti-corrosion, but low strength, such as video, the transportation and storage equipments of chemical products, metal sheet products, the processing of drawing spinning hollow goods, welding key combination, reflector and nameplat, etc. 1100 aluminum sheet is widely used in various fields from cooking utensils to industrial equipment, such as heat sinks, caps, printing sheets, building materials, heat exchanger components, it can also be used as deep-draw stamping products.
RELEVANT GRADE OF 1100 ALUMINUM SHEET:

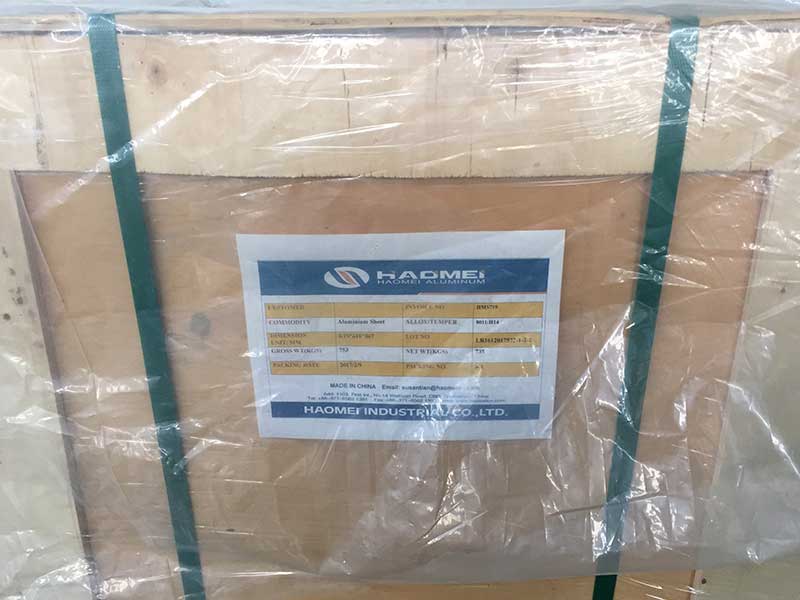

1100 ALUMINUM SHEET PACKING：
1100 Aluminum Sheet of packaging meet the export standard. Plastic film and brown paper can be covered at customers’ need. wooden case or wooden pallet is adopted to protect products from damage during the delivery.
As a China-based 1100 aluminum sheet manufacturer and supplier, we at Haomei also produce aluminum slit coil, aluminum strip, coated aluminum coil, aluminum plate, anodising aluminum sheet, embossed aluminum sheet, etc. For more detailed information, please continue browsing our website or feel free to contact us directly.
