Aluminium Lithographic Coil (also called PS panel) is a professional material that used for the printing application. It has high surface quality requirement.

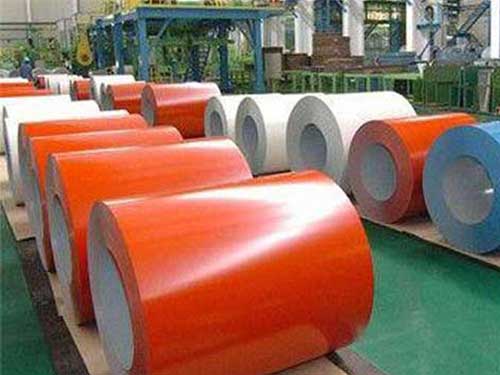

PVDF coated aluminum coils are specially processed through the technics of roller coating and baking with precise paints from BECKER INDUSTRIAL COATINGS in Sweden and THE VALSPAR CORPORATION
1050 aluminum alloy is a series of products, 1050 aluminum coil with high plasticity, corrosion resistance, electrical conductivity and good thermal conductivity characteristics, but the int
1060 aluminum production process is relatively simple, relatively mature technology, the price relative to other high-grade aluminum alloy to be much cheaper.
1100 aluminum coil processing technology and equipment are relatively simple, and the aluminium coil price of aluminum alloy 1100 is cheap.
3003 aluminum coil is the most widely used aluminum alloy. It is made up of aluminum, copper, iron, manganese, silicon and zinc. It is commonly used because it has great resistance to corros
3005 aluminum alloy (Al-Mg) is approximately 20% higher strength than alloy 3003 with superior corrosion resistance. 3000 series aluminum coil is also called anti-rust aluminum.
3105 aluminum coil with 98% pure aluminum and slight alloy additions for strength. 0.3% of copper is added to 3105 aluminum coil, so the conductivity turns out to be 41%.
The 5052 aluminum coil is an alloy made up of 2.5 percent magnesium and 0.25 percent chromium. It’s considered to have great workability and weldability.
5754 Alumiunm alloy is the least alloyed (highest composition % of aluminium), but only by a small amount. It is used in similar applications. As a wrought alloy, it can be formed by rolling
ALUMINUM COILSPECIFICATIONS
| Thickness | Width | Alloy | Package |
| 0.3-6mm | 900-1600mm | 1060,1100,3003,3004,3105,5005,5052,5754,5083,6061,6082 ect | eye to eye,eye to sky |
ALUMINUM COIL DESC:
About one-third as dense as copper or steel, aluminum offers the advantages of malleability and ductility, ultimately allowing aluminum to be easily machined and cast into aluminum coils or aluminum sheet. Add in its consistent strength, lightness, and value, and it becomes easy to understand why aluminum remains a popular metal, used to match any number of exact needs across a broad range of industries.
ALUMINUM COIL SPECIFICATION:
Aluminum coil, is a rolled product, produced in a coiled form of continuous strip, and having an ID (Inner diameter) and OD (Outer diameter).Common alloy coil are used for a wide variety of applications, alloy 1050, 1060, 3003, 3105, 3005, 5052, 5754, 5083, 6061, 8011, 8021, and so on, in thickness from 0.2-100mm, in width from 100-2600mm.
HOT SALES ALUMINUM COIL:
1050 aluminum alloy is a series of products, 1050 aluminum coil with high plasticity, corrosion resistance, electrical conductivity and good thermal conductivity characteristics.However, 1050 aluminum coil has low mechanical strength compared to more significantly alloyed metals. All of these characteristics make 1050 aluminum coil well suited to chemical and electrolytic brightening but not in casting. Last but not least, moderate strength and good anodizing quality enables our products has a vast application.
1060 aluminum Coil for the industrial aluminum, aluminum content (mass fraction) of 99.60%, not heat treatment to strengthen.1060 aluminum coil has good corrosion resistance as well as poor machine-ability, and its machine-ability can be improved in harder (cold working) tempers, such as H16 and H18. For its features above, 1060 aluminum coil has a vast application, such as electric and chemical equipment, railroad tank cars, etc.
3003 aluminum coil is the most widely used aluminum alloy. It is made up of aluminum, copper, iron, manganese, silicon and zinc. It is commonly used because it has great resistance to corrosion and is moderately strong. The 3003 aluminum coil is 20% stronger than 1100 grade alloys because it is fused with manganese.
3105 aluminum coil with 98% pure aluminum and slight alloy additions for strength. 0.3% of copper is added to 3105 aluminum coil, so the conductivity turns out to be 41%. For its contents and processing technologies, 3105 aluminum coil is light in weight and it has semi-smooth surface.
The 5052 aluminum coil is an alloy made up of 2.5 percent magnesium and 0.25 percent chromium. It’s considered to have great workability and weldability. It has medium static and high fatigue strength. The corrosion resistance of this aluminum is very good, especially in marine environments.
5754 Alumiunm coil is the least alloyed (highest composition % of aluminium), but only by a small amount. As a wrought alloy, it can be formed by rolling, extrusion, and forging, but not casting. Aluminum 5754 has excellent corrosion resistance, especially to seawater and industrially polluted atmospheres.
ALUMINUM COIL APPLICATION:
Our aluminum coil ailable in alloys in the 1000 to 8000 series range, we stock a full range of aluminum coils to service a wide range of industries, including automotive, pharmaceutical, electrical, and food service. It is important to note that choosing the right alloy for the aluminum coil is directly dependent on the specific use case.
Before purchasing any aluminum coils, it is vital you understand the specific strains the material will face during use. Properties to pay attention to include:
Tensile Strength
Wettability
Weldability
Formability
Corrosion Resistance
As a professional manufacturer and supplier of aluminum coil based in China, we also provide aluminium slit coil, anodising aluminum sheet, 5 bar aluminum tread plate, aluminum strip, aluminum sheet, diamond aluminum tread plate, and more. Whenever you have a need for any of our products, please feel free to contact us at Haomei.
