| Alloy: | 1070 |
| Width: | 100-2600mm |
| Thickness: | 0.2-4.5mm |
| Port of Loading: | QingDao |
| Certificated: | ISO9001 |

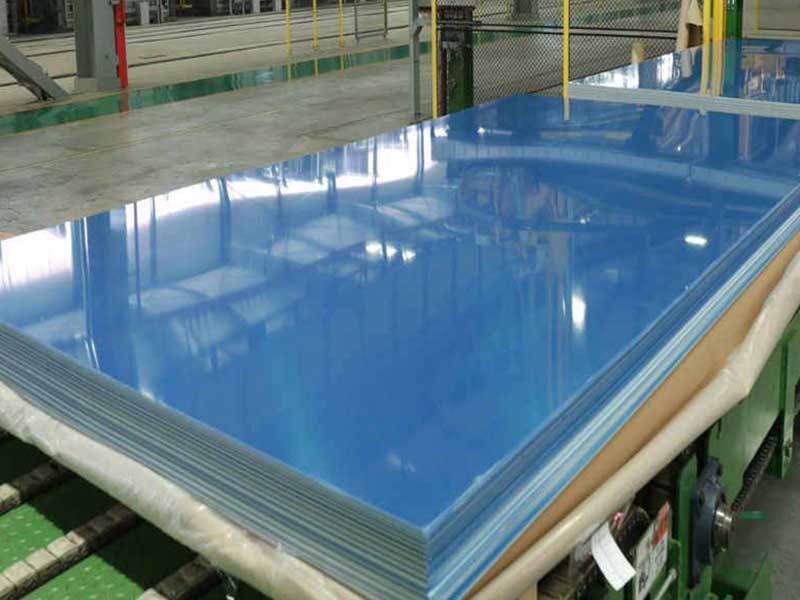

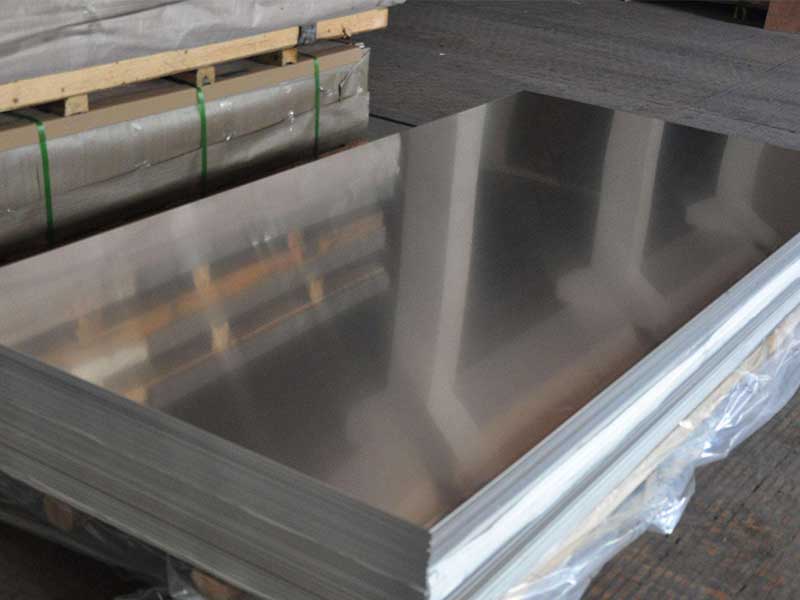

1070 ALUMINUM SHEET DESCRIPTION:
1070 aluminum sheet has some features such as high plasticity, anti-corrosion, electrical conductivity and good thermal conductivity, but low strength. And the machinability is not good without heat treatment. It can be used for gas welding. This specific properties of 1070 aluminum alloy can be used to produce some structures such as aluminium gasket and capacitor, electronic wire, pipe net, protective sleeve, cable net, wire core, plane ventilation system parts and decorative parts, etc.
The last two numbers in the serial number are used to determine the lowest aluminum content of this series. For example, in the 1070 aluminum sheet, the last two numbers are 70 and according to the corresponding international standard, the aluminum content has to reach 99.7% or more. In GB/T3880-2006, the technical standard of aluminum alloy in China, 1050 series also means the aluminum content has to reach 99.5%. Similarly, the aluminum content of 1060 series aluminum sheet has to reach 99.6% or more.
1070 ALUMINUM SHEET CHEMICAL COMPOSITION:
| Elements | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others | Al | |||
| Content(max) | 0.20 | 0.25 | 0.04 | 0.03 | 0.03 | - | 0.04 | 0.03 | 0.03 | 99.7 | |||
1070 ALUMINUM SHEET PROPERTIES:
| Alloy | Temper | Thickness(mm) | Width(mm) | Length(mm) | Typical products |
| 1070 aluminum sheet | O,H12,H14,H16 H18,H19,H22,H24 H26,H28,H32,H34 H36,H38 | 0.2-350 | 100-2600 | 500-16000 | Network isolation tube, wire, aircraft parts and other ventilation systems |
1070 ALUMINUM SHEET APPLICATION:
1070 aluminum sheet can be used for producing some structures with specific properties such as aluminum gasket and the capacitor, electronic wire, pipe net, protective sleeve, cable net, wire core and aircraft parts and trim ventilation system.
RELEVANT GRADE OF 1070 ALUMINUM SHEET
1070 ALUMINUM SHEET PACKING：
1070 Aluminum Sheet of packaging meet the export standard. Plastic film and brown paper can be covered at customers’ need. wooden case or wooden pallet is adopted to protect products from damage during the delivery.
As a China-based 1070 aluminum sheet manufacturer and supplier, we at Haomei also produce aluminum slit coil, aluminum strip, coated aluminum coil, aluminum plate, anodising aluminum sheet, embossed aluminum sheet, etc. For more detailed information, please continue browsing our website or feel free to contact us directly.
